Plastics:
Biodegradable, biobased, biomass-balanced compounds or recyclates – depending on the specific compound, details below
Applications:
diverse, from consumer goods to use in the automotive sector
About the Product Family

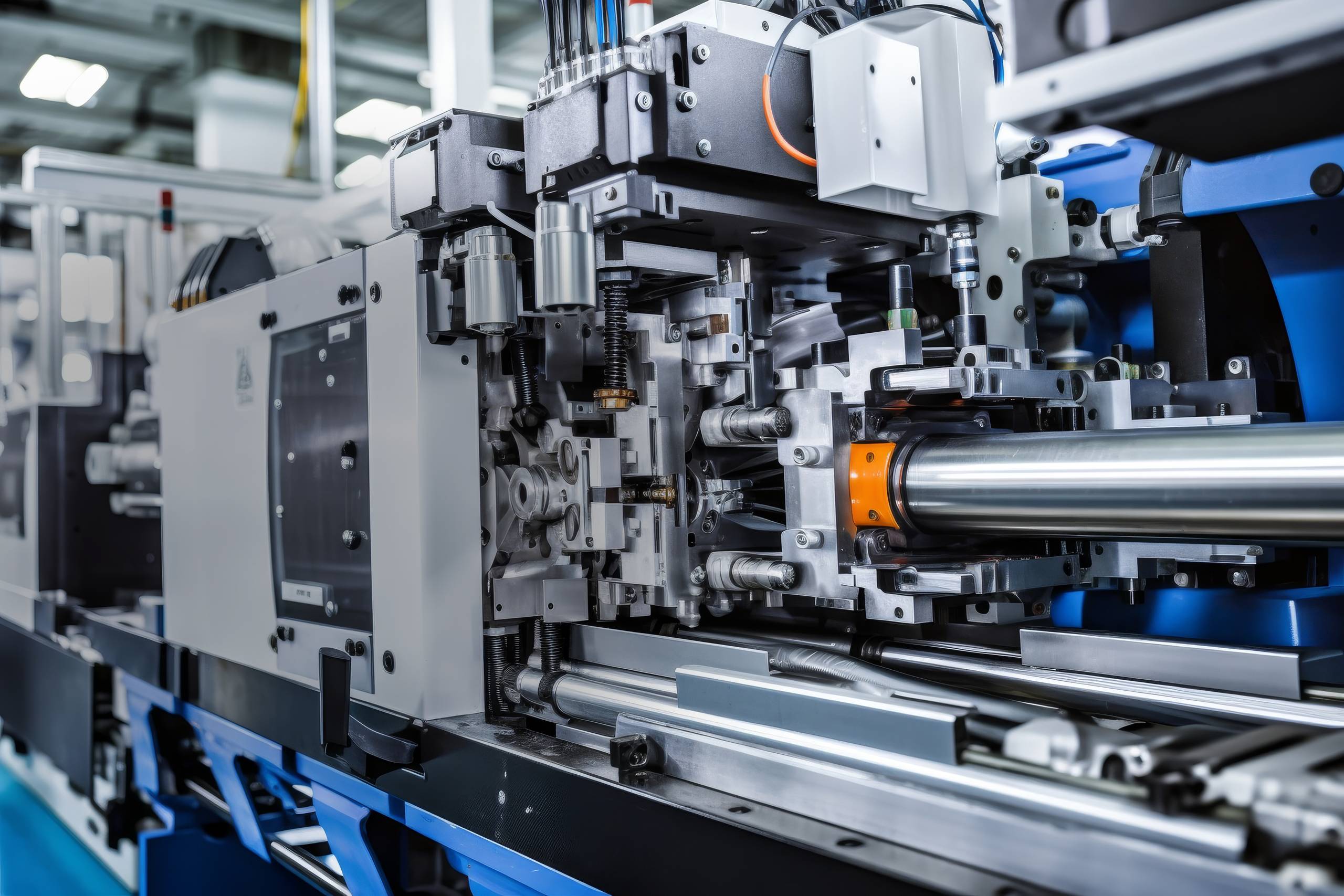

BIO-FED offers a wide range of compounds for injection moulding. All compounds can be processed on conventional injection moulding machines and with standard moulds.
Compounds with recycled content
Our M·CYCLOSE® compounds contain recycled materials. These recycled materials either come from products that have already completed a life cycle with consumers (PCR = Post Consumer Recyclate), or from waste products from industry, such as start-up materials from plastics processing (PIR = Post Industrial Recyclate). In both cases, using recycled material can reduce the proportion of virgin material in the respective compound.
Our M·CYCLOSE® materials contain varying proportions of 'post-consumer' or 'post-industrial' recyclates. These recyclates are used in our compounds either as a base material or as a filler. We specify the origin and the percentage of recycled material for each compound.
:format(avif))

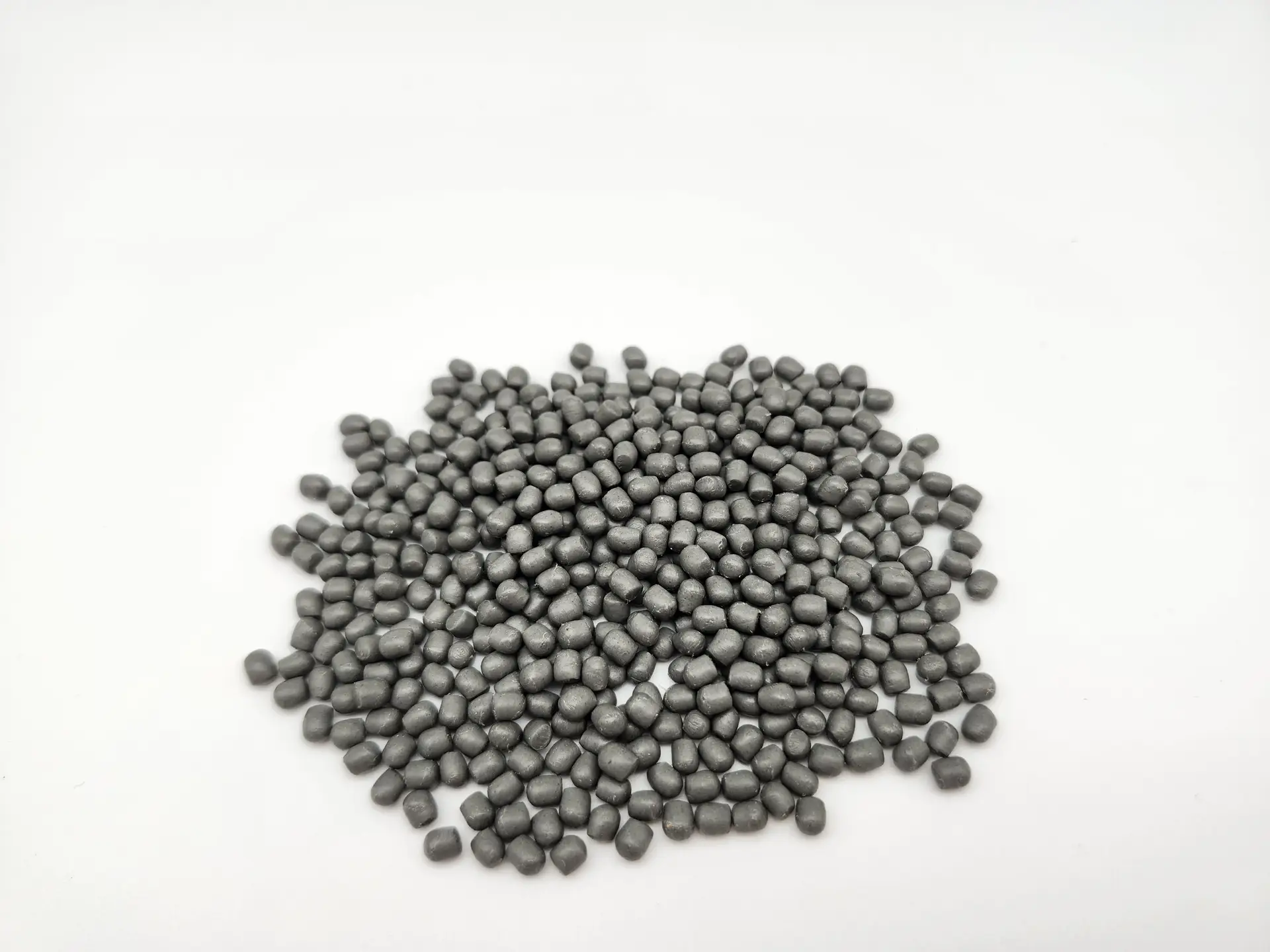

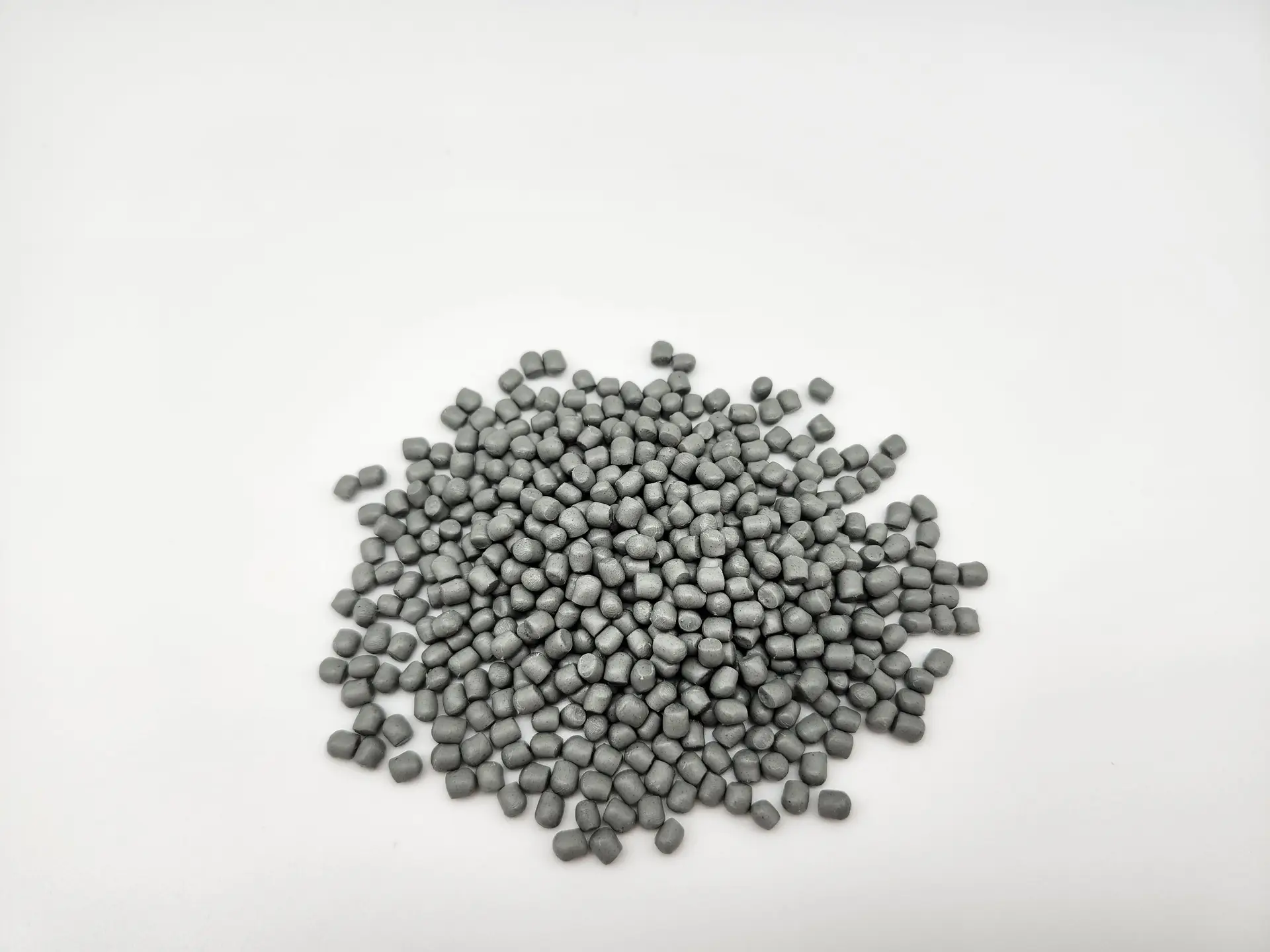

100 % PCR rPE with 10 % household waste filler
Recyclate content: >98 %
Origin: Post-consumer
MFR: 6.8 g/10 min (190 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))

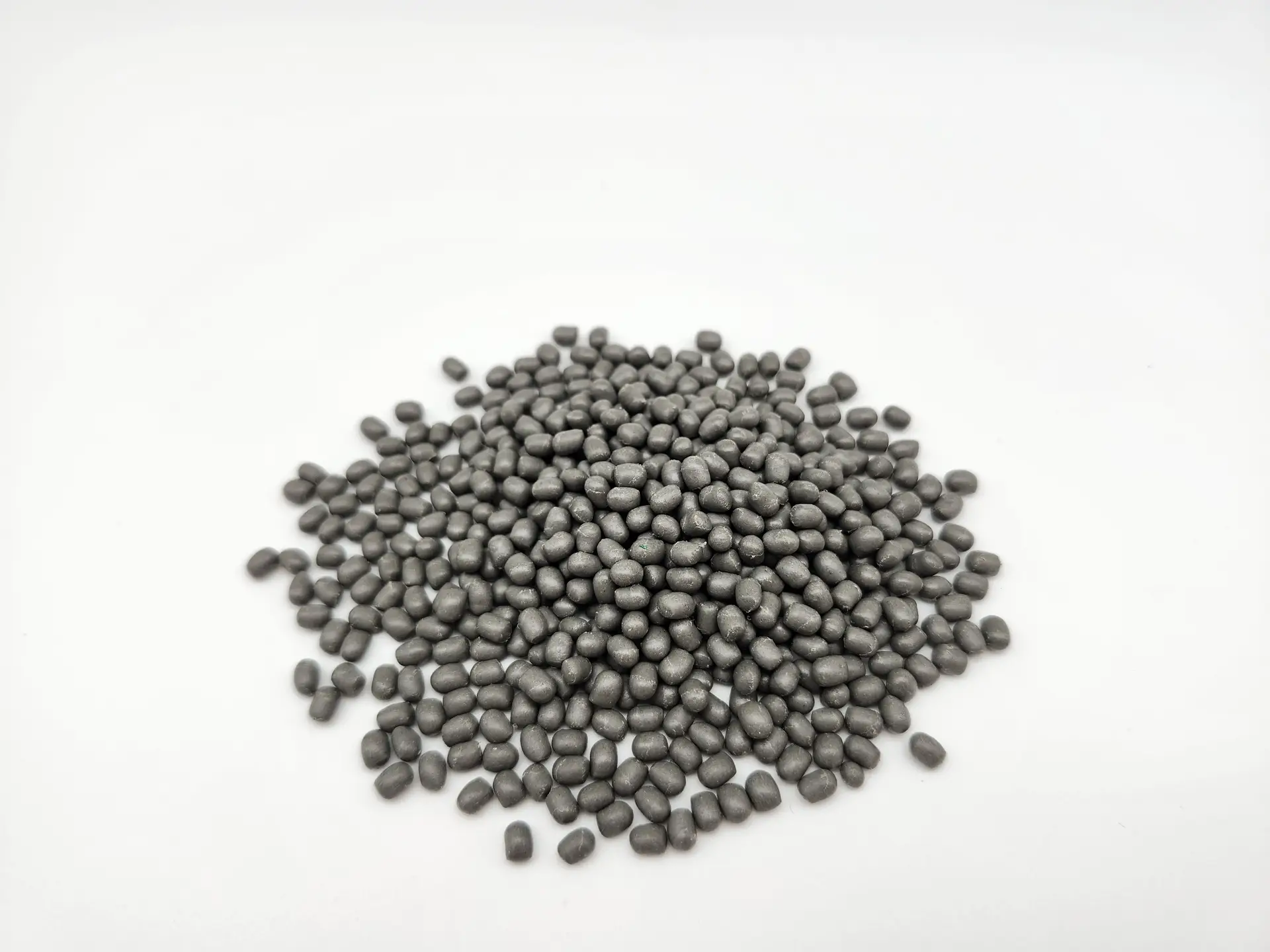

100 % PCR rPE with 20 % household waste filler
Recyclate content: >98 %
Origin: Post-consumer
MFR: 5.5 g/10 min (190 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
:format(avif))
:format(avif))
Biomass-balanced or biobased compounds
Most of our M·BIOBASE® compounds consist, amongst other things, of biomass-balanced polypropylene (PP), which is derived wholly or partly from renewable raw materials such as vegetable oils and waste oils. These selected compounds are certified to ISCC PLUS, which ensures the traceability of the massbalanced material flow throughout the entire value chain. The proportion of ISCC-certified bio-circular material is sourced and allocated to the relevant compound in accordance with the ISCC mass balance approach, and is stated separately by us for each compound.
:format(avif))
Low temperature impact-resistant PP
Certification: ISCC PLUS
Allocation factor: 90 %
MFR: 3.5 g/10 min (230 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
Our sustainable PP allrounder
Certification: ISCC PLUS
Allocation factor: 100 %
MFR: 12 g/10 min (230 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
PP for thin and transparent applications
Certification: ISCC PLUS
Allocation factor: 100 %
MFR: 50 g/10 min (230 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
Particularly stable PP due to glass fibres
Certification: ISCC PLUS
Allocation factor: 96 %
MFR: 5 g/10 min (230 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
PP with improved mechanics due to wood
Certification: ISCC PLUS
Allocation factor: 80 %
MFR: 8 g/10 min (230 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))

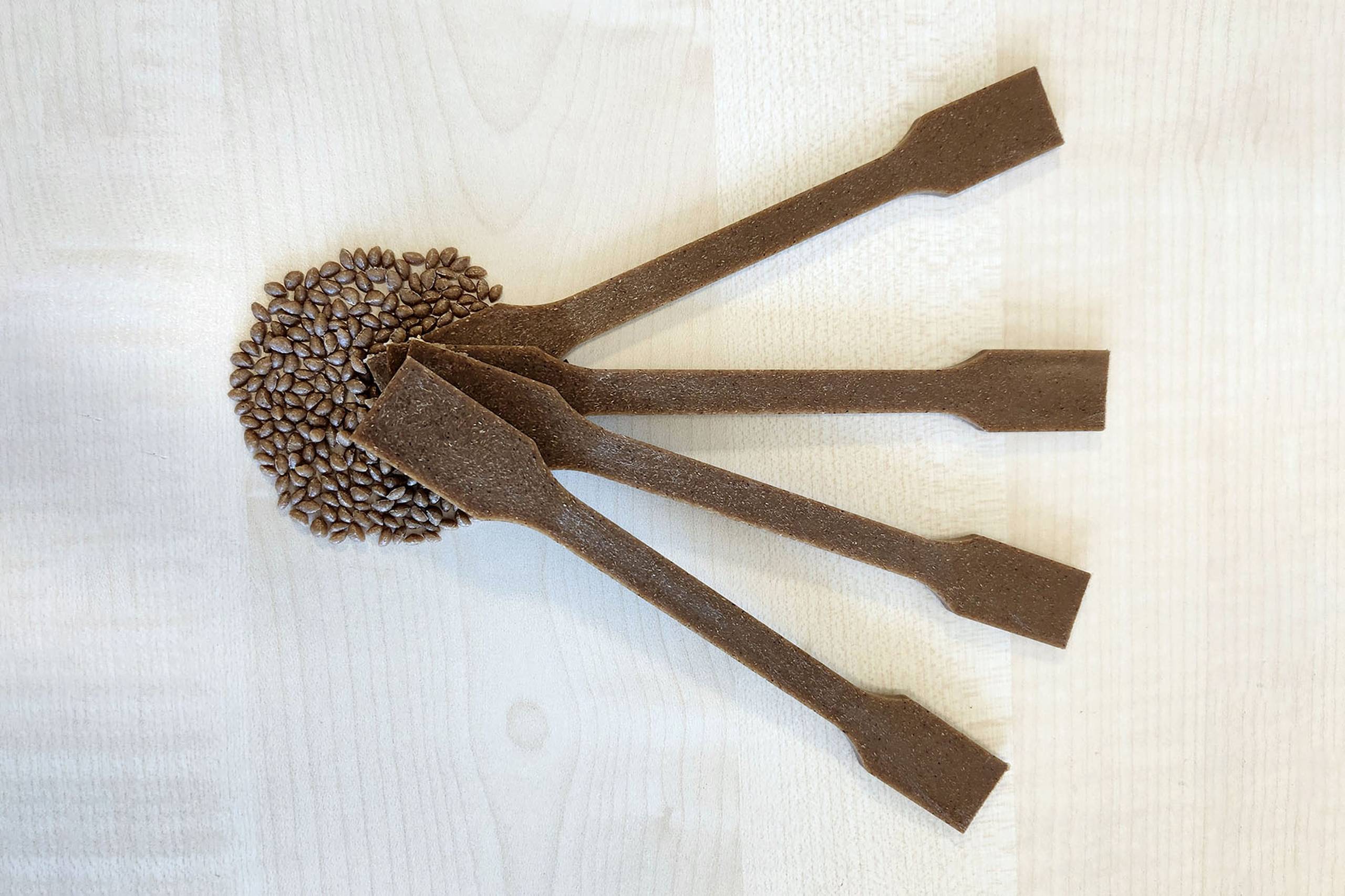

PP with natural look due to wood fibres
Certification: ISCC PLUS
Allocation factor: 70 %
MFR: 13 g/10 min (230 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
:format(avif))
Biodegradable Compounds
Our M∙VERA® bioplastics contain varying proportions of renewable raw materials and polymers, with degradability specified for each compound. The relevant certifications from independent institutes are specified for each compound, e.g. for industrial composting (OK compost INDUSTRIAL in accordance with EN 13432), home composting (OK compost HOME in accordance with NF T51-800 [11-2015]) or soil biodegradability (OK biodegradable SOIL in accordance with ISO 17556/EN 13432 or Biodegradable in Soil in accordance to EN 17033:2018-03 for mulch films) under defined conditions. Further details follow below.
:format(avif))
Soil degradable and from renewable sources
Degradability: OK biodegradable SOIL & OK compost HOME
Organic content: >98 %
MVR: 9 cm³/10 min (160 °C/5 kg)
Processing technology: Injection moulding, extrusion
Learn more
:format(avif))
Our universal allrounder
Degradability: OK compost INDUSTRIAL
Organic content: 68 %
MVR: 10 cm³/10 min (190 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
Stiff and almost 100 % renewable content
Degradability: OK compost INDUSTRIAL
Organic content: >98 %
MVR: 11 cm³/10 min (190 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
Transparent and particularly flowable
Degradability: OK compost INDUSTRIAL
Organic content: >98 %
MVR: 30 cm³/10 min (190 °C/2.16 kg)
Processing technology: Injection moulding
Learn more
:format(avif))
:format(avif))
Certifications for bioplastics
Testing for certain limit values of heavy metals must first be successfully completed
The tests are carried out at approx. 60 °C:
1. Disintegration (end product): Min. 90 % must disintegrate within 12 weeks; remaining parts must not be larger than 2 mm
2. Biodegradation (powder): Min. 90 % within 6 months; measurement of CO2
Ecotoxicity test: Growth test with two plant species
Testing for certain limit values of heavy metals must first be successfully completed
The tests are carried out at approx. 28 °C
1. Disintegration (end product): Min. 90 % must disintegrate within 26 weeks; remaining parts must not be larger than 2 mm
2. Biodegradation (powder): Min. 90 % within 12 months; measurement of CO2
Ecotoxicity test: Growth test with two plant species
The test for certain limit values of heavy metals must first be successfully completed
The test is carried out on the ground compound at approx. 23 °C
- Biodegradation: Min. 90 % within 24 months; measurement of CO2Ecotoxicity test: Growth test with two plant species
The test for certain limit values of heavy metals must first be successfully completed
The test is carried out on the ground compound at approx. 23 °C
- Biodegradation: Min. 90 % within 24 months; measurement of CO2Ecotoxicity test: Growth test with two plant species
Nitrification test and earthworm test
