PP with improved mechanics thanks to wood
All information about our compound at a glance
Image dimensions not found
Change image or reupload it
PP with improved mechanics due to wood
M·BIOBASE® PPH 080 WF20 nat CI is an advanced plastic compound, which is ISCC PLUS certified and has an allocation factor (biomass balanced content) of approx. 80 %. It contains a biobased proportion of 20 % in form of wood fibres, which provide high stiffness. The wood fibres also give the end products an appealing and natural wood look.
This material is characterised by good flowability and very good impact strength. It enables problem-free processing on conventional machines and is ideal for injection moulding applications.
M·BIOBASE® PPH 080 WF20 nat CI is ideally suited for technical components, sports equipment, toys and consumer goods in general. The combination of robustness and environmental friendliness makes M·BIOBASE® PPH 080 WF20 nat CI a versatile solution for a wide range of applications.
Product properties
Certification
ISCC PLUS
Allocation factor
approx. 80 %
Processing technology
Injection moulding
MFR (230 °C/2.16 kg)
8 g/10 min
Stiffness
3,040 MPa
Charpy notched
2.7 kJ/m²
Image dimensions not found
Change image or reupload it
We would be happy to make you an offer!
Indicative technical data M·BIOBASE® PPH 080 WF20 nat CI
English | M·BIOBASE® PPH 080 WF20 nat CI | Unit | Standard |
|---|---|---|---|
Food contact approval: | no | - | EU 10/2011 |
Certification: | ISCC PLUS | - | - |
Biomass-balanced content (allocation factor) | approx. 80 | % | - |
Filler | 20 % wood fibre | % | |
Appearance: | brownish, fibres visible | - | - |
MFR (230 ˚C/2.16 kg): | 8 | g/10 min | ISO 1133 |
Density: | 0.97 | g/cm³ | ISO 1183 |
Tensile modulus: | 3,040 | MPa | ISO 527-1/-2 |
Tensile stength at break: | 39 | MPa | ISO 527-1/-2 |
Elongation at break: | 4.3 | % | ISO 527-1/-2 |
Charpy notched impact strength (+23 °C): | 2.7 | kJ/m² | ISO 179-1/1eA |
Charpy unnotched impact strength (+23 °C): | 17.4 | kJ/m² | ISO 179-1/1eU |
HDT/B | 142 | °C | ISO 75/B |
Please refer to the product data sheet for details.
Not the right material?
If you need an alternative compound with different material properties, you will find all our materials suitable for injection moulding here:
Image dimensions not found
Change image or reupload it

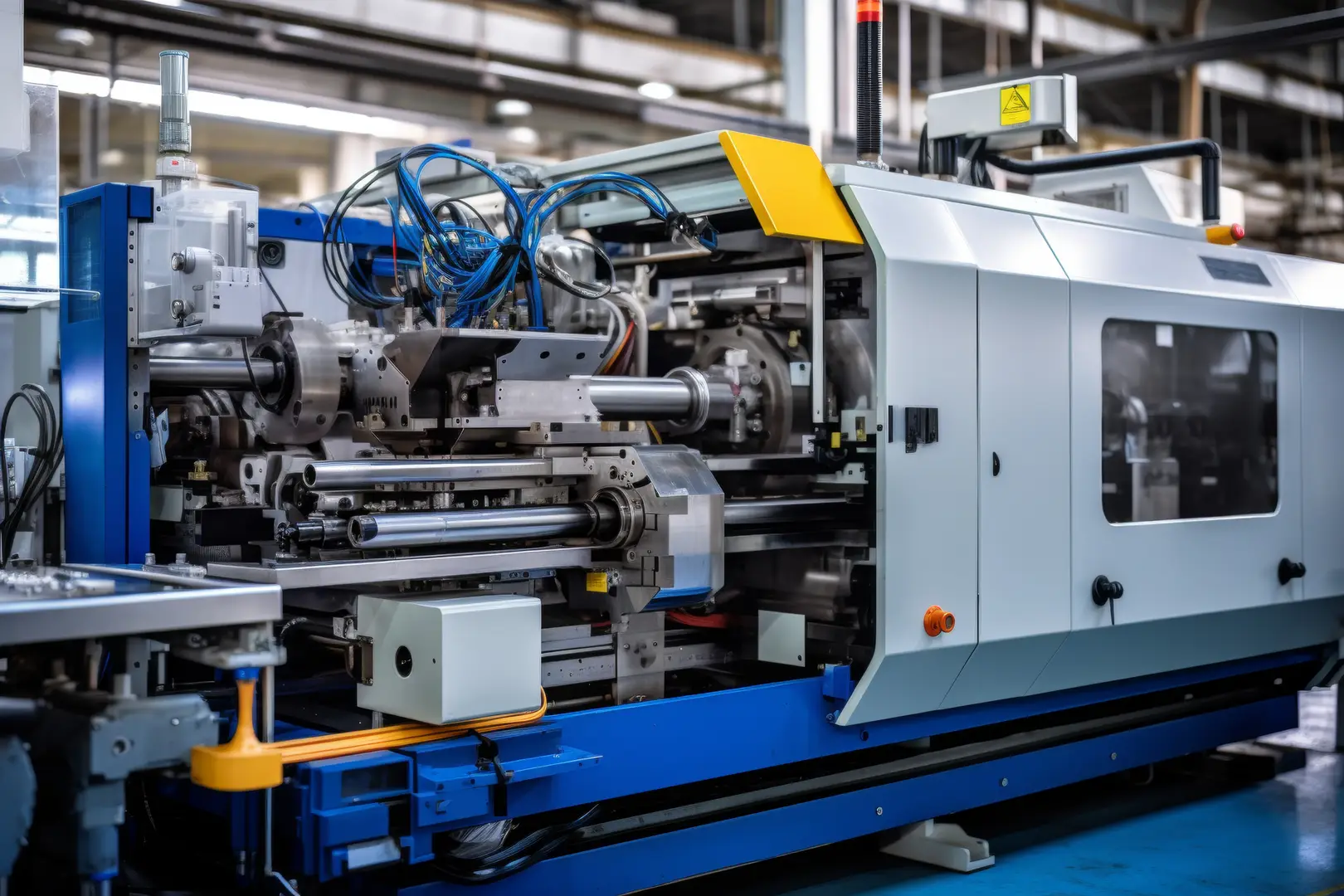

Processing instructions
Details on processing, handling and storage as well as processing temperatures and measured values can be found here:
Possible applications

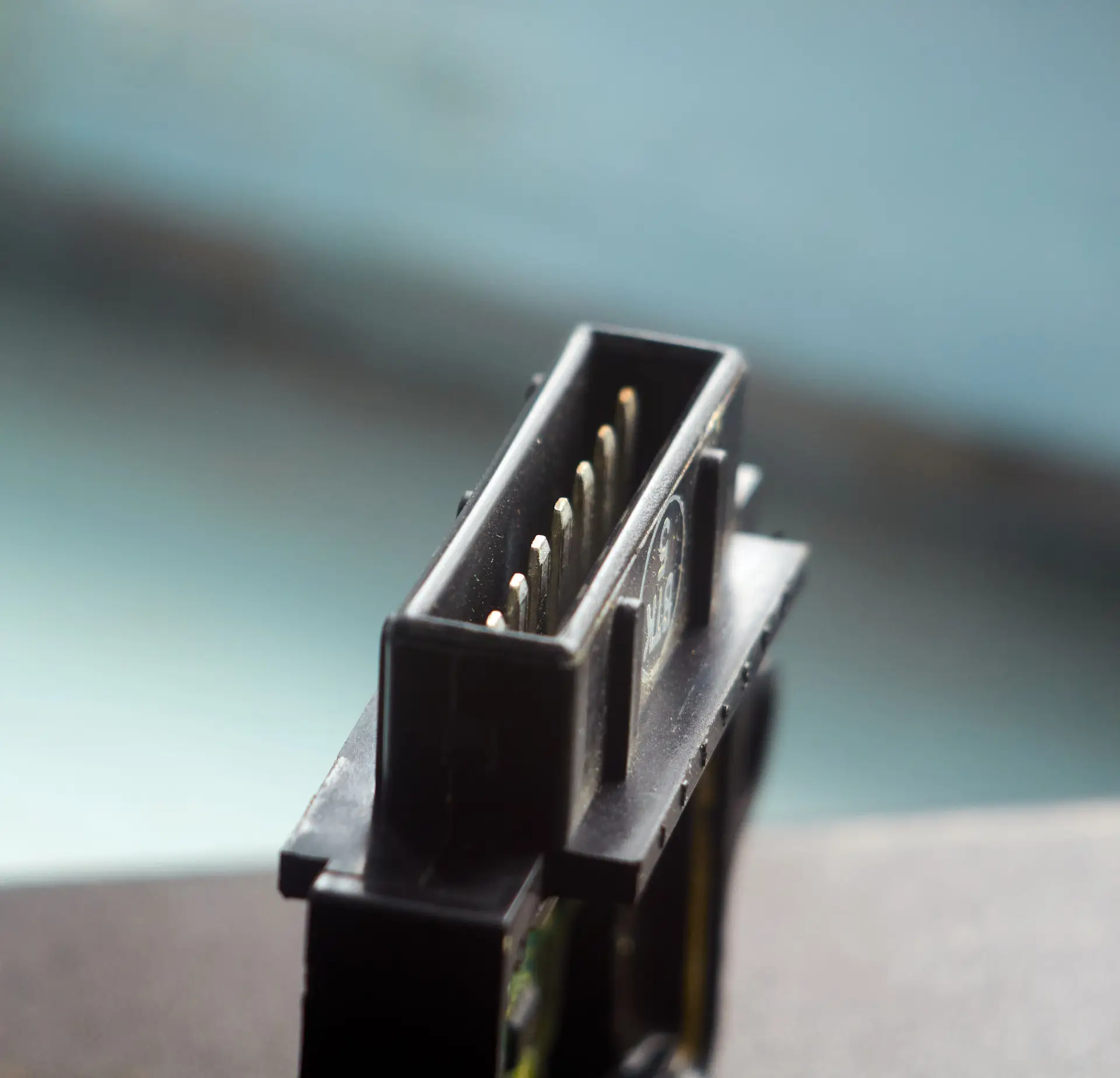

Technical components
Toys
Consumer goods
Plant clips

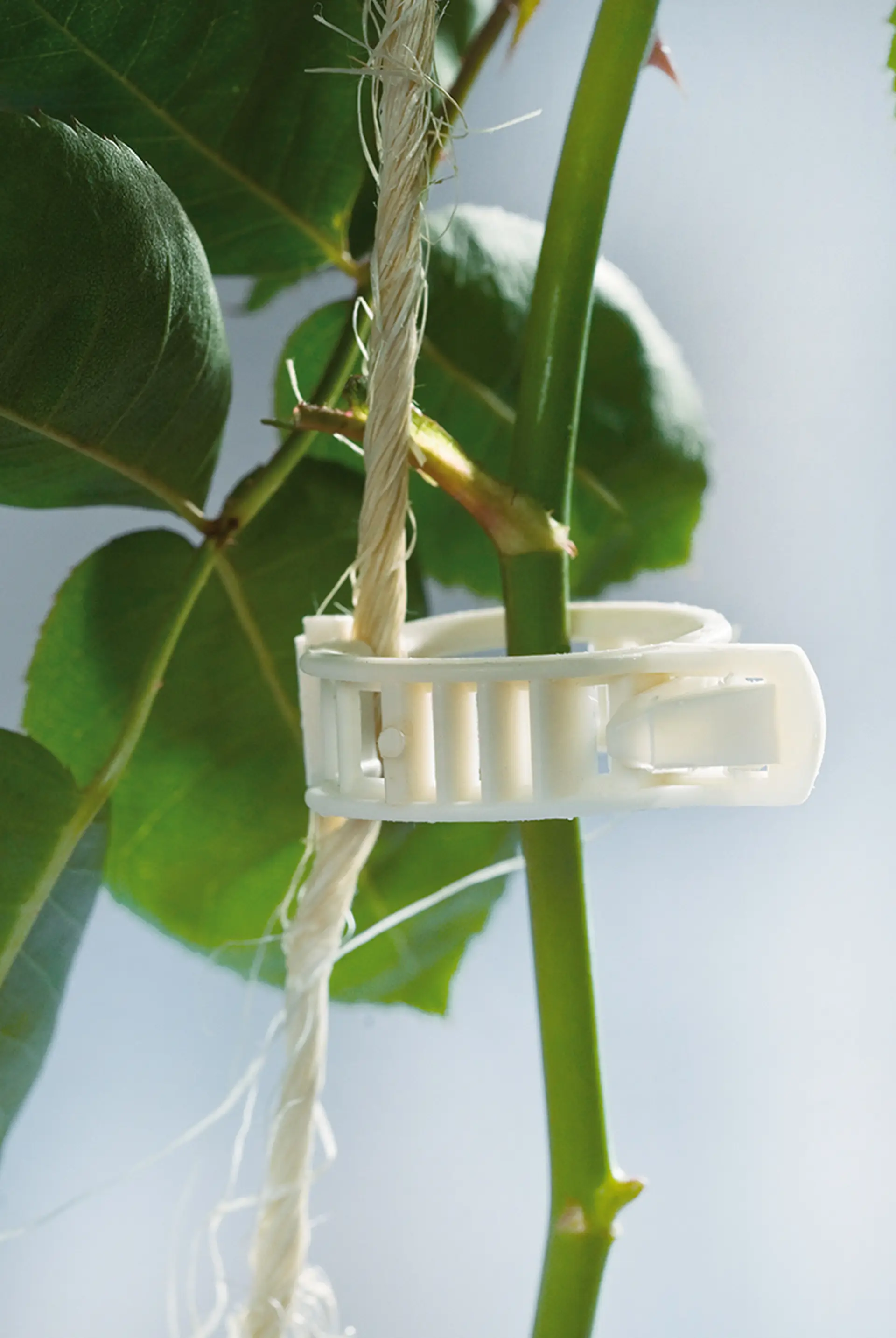

Clips
Your application
Disclaimer: The information is based on our current knowledge and experience. A legally binding guarantee of certain properties or suitability for a specific individual case cannot be derived from this information. The information provided here does not release processors and users from carrying out their own tests and investigations in specific individual cases. BIO-FED®, M∙VERA®, M·BIOBASE®, M·CYCLOSE®, AF-Eco®, AF-CirColor®, AF-Carbon® and AF-CirComplex® are registered trademarks of AKRO-PLASTIC GmbH.
