Particularly stable PP due to glass fibre
M·BIOBASE® PPH 050 GF30 nat CI is a high-performance plastic compound that is characterised by its ISCC PLUS certification and a food conformity fulfils the highest standards in terms of sustainability and safety. It has a high allocation factor (biomass-balanced proportion) of over 95 %, which emphasises its sustainability.
The material is 30 % reinforced with glass fibres which results in very high rigidity and excellent impact strength. The good flowability of the material enables efficient processing on conventional injection moulding machines. This makes M·BIOBASE® PPH 050 GF30 nat CI ideal for the production of technical components which have to withstand high mechanical loads and also have to be manufactured with precision.
Product properties
Certification
ISCC PLUS
Allocation factor
approx. 96 %
Processing technology
Injection moulding
MFR (230 °C/2.16 kg)
5 g/10 min
Stiffness
7,350 MPa
Charpy notched
14.5 kJ/m²
Image dimensions not found
Change image or reupload it
We would be happy to make you an offer!
Indicative technical data M·BIOBASE® PPH 050 GF30 nat CI
English | M·BIOBASE® PPH 050 GF30 nat CI | Unit | Standard |
|---|---|---|---|
Food contact approval: | yes | - | EU 10/2011 |
Certification: | ISCC PLUS | - | - |
Biomass-balanced content (allocation factor) | approx. 96 | % | - |
Filler | 30 % glass fibre | % | |
MFR (230 ˚C/2.16 kg): | 5 | g/10 min | ISO 1133 |
Density: | 1.12 | g/cm³ | ISO 1183 |
Tensile modulus: | 7,350 | MPa | ISO 527-1/-2 |
Tensile stength at break: | 95 | MPa | ISO 527-1/-2 |
Elongation at break: | 3.2 | % | ISO 527-1/-2 |
Charpy notched impact strength (+23 °C): | 14.5 | kJ/m² | ISO 179-1/1eA |
Charpy unnotched impact strength (+23 °C): | 58.5 | kJ/m² | ISO 179-1/1eU |
HDT/B | 158 | °C | ISO 75/B |
Please refer to the product data sheet for details.
Not the right material?
If you need an alternative compound with different material properties, you will find all our materials suitable for injection moulding here:
Image dimensions not found
Change image or reupload it
Processing instructions
Details on processing, handling and storage as well as processing temperatures and measured values can be found here:
Possible applications

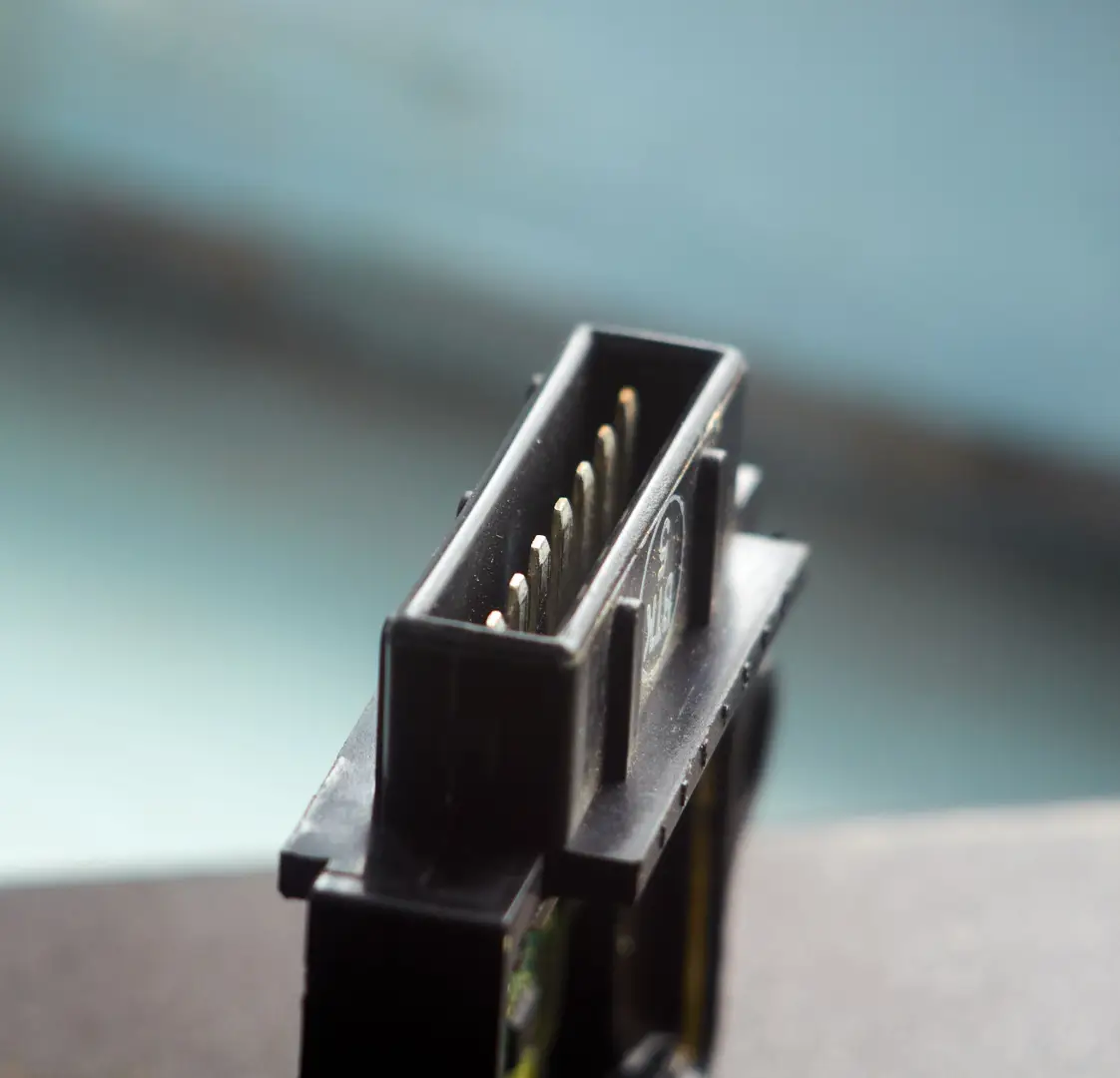

Technical components
Toys
Consumer goods

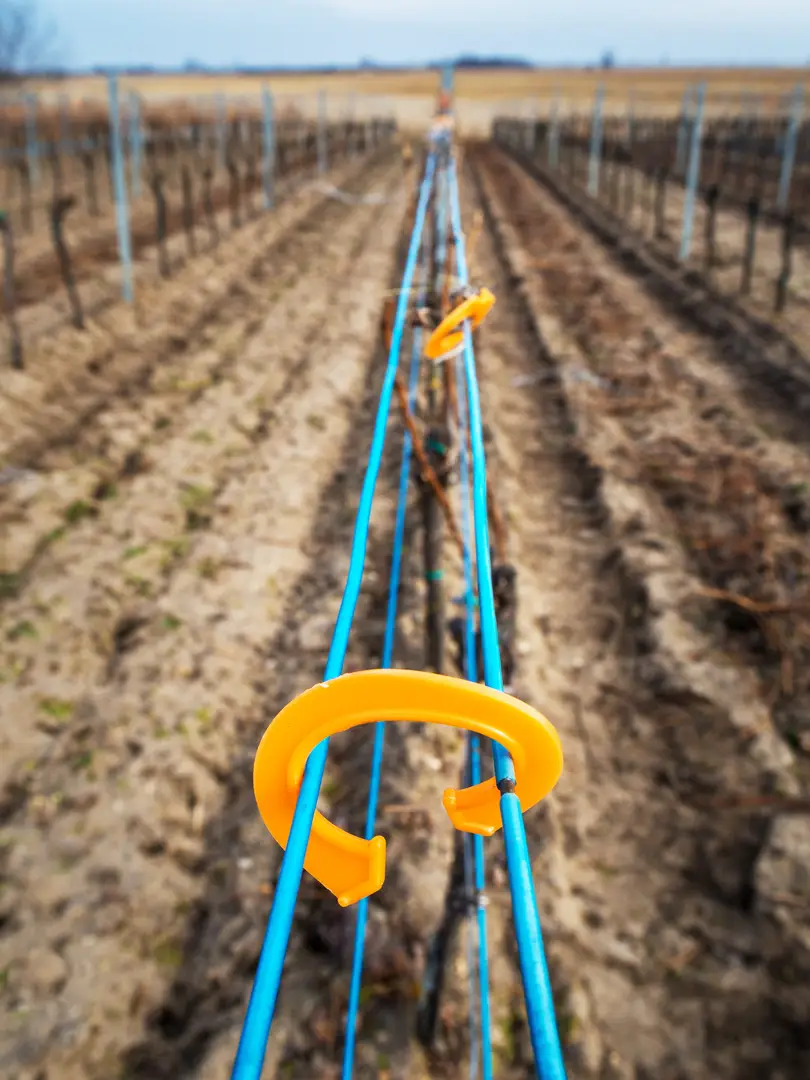

Plant clips
Clips
Your application
Disclaimer: The information is based on our current knowledge and experience. A legally binding guarantee of certain properties or suitability for a specific individual case cannot be derived from this information. The information provided here does not release processors and users from carrying out their own tests and investigations in specific individual cases. BIO-FED®, M∙VERA®, M·BIOBASE®, M·CYCLOSE®, AF-Eco®, AF-CirColor®, AF-Carbon® and AF-CirComplex® are registered trademarks of AKRO-PLASTIC GmbH.
