PP with wood fibres
All information about our compound at a glance
:format(avif))
Particularly flowable PP with wood fibres
M·BIOBASE® PPH 230 WF20 nat CI is certified according to ISCC PLUS. Ca. 80% ISCC-certified bio-circular material is sourced and attributed to the compound following the ISCC mass balance approach.
Furthermore, organic raw materials such as wood are used in this M·BIOBASE® compound. The biobased content of 20 % wood fibres in the compound comes from waste streams from the timber industry. The wood look gives the end products an attractive, natural appearance.
The material also impresses with its good rigidity and a very high flowability which makes it easy to process on conventional machines. In addition, the good impact strength ensures reliability in demanding applications. M·BIOBASE® PPH 230 WF20 nat CI is particularly suitable for injection moulding process and can be used for a wide range of applications, including technical components, sports equipment, toys and general consumer goods.
Product properties
Certification
ISCC PLUS
Allocation factor
approx. 80 %
Processing technology
Injection moulding
MFR (230 °C/2.16 kg)
23 g/10 min
Stiffness
2,670 MPa
Charpy notched
2.2 kJ/m²
Test our M·BIOBASE® PP compound!
Indicative technical data M·BIOBASE® PPH 230 WF20 nat CI
English | M·BIOBASE® PPH 230 WF20 nat CI | Unit | Standard |
|---|---|---|---|
Food contact approval: | no | - | EU 10/2011 |
Certification: | ISCC PLUS | - | - |
Biomass-balanced content (allocation factor) | approx. 80 | % | - |
Filler | 20 % wood fibre | % | |
Appearance: | brownish, fibres visible | - | - |
MFR (230 ˚C/2.16 kg): | 23 | g/10 min | ISO 1133 |
Density: | 0.96 | g/cm³ | ISO 1183 |
Tensile modulus: | 2,670 | MPa | ISO 527-1/-2 |
Tensile stength at break: | 28 | MPa | ISO 527-1/-2 |
Elongation at break: | 5.2 | % | ISO 527-1/-2 |
Charpy notched impact strength (+23 °C): | 2.2 | kJ/m² | ISO 179-1/1eA |
Charpy unnotched impact strength (+23 °C): | 13.6 | kJ/m² | ISO 179-1/1eU |
HDT/B | 131 | °C | ISO 75/B |
Please refer to the product data sheet for details.
Not the right material?
If you need an alternative compound with different material properties, you will find all our materials suitable for injection moulding here:
:format(avif))
A lot of applications can be produced with M·BIOBASE® PP
:format(avif))
Technical components
:format(avif))
Toys
:format(avif))
Consumer goods
:format(avif))
Plant clips
:format(avif))

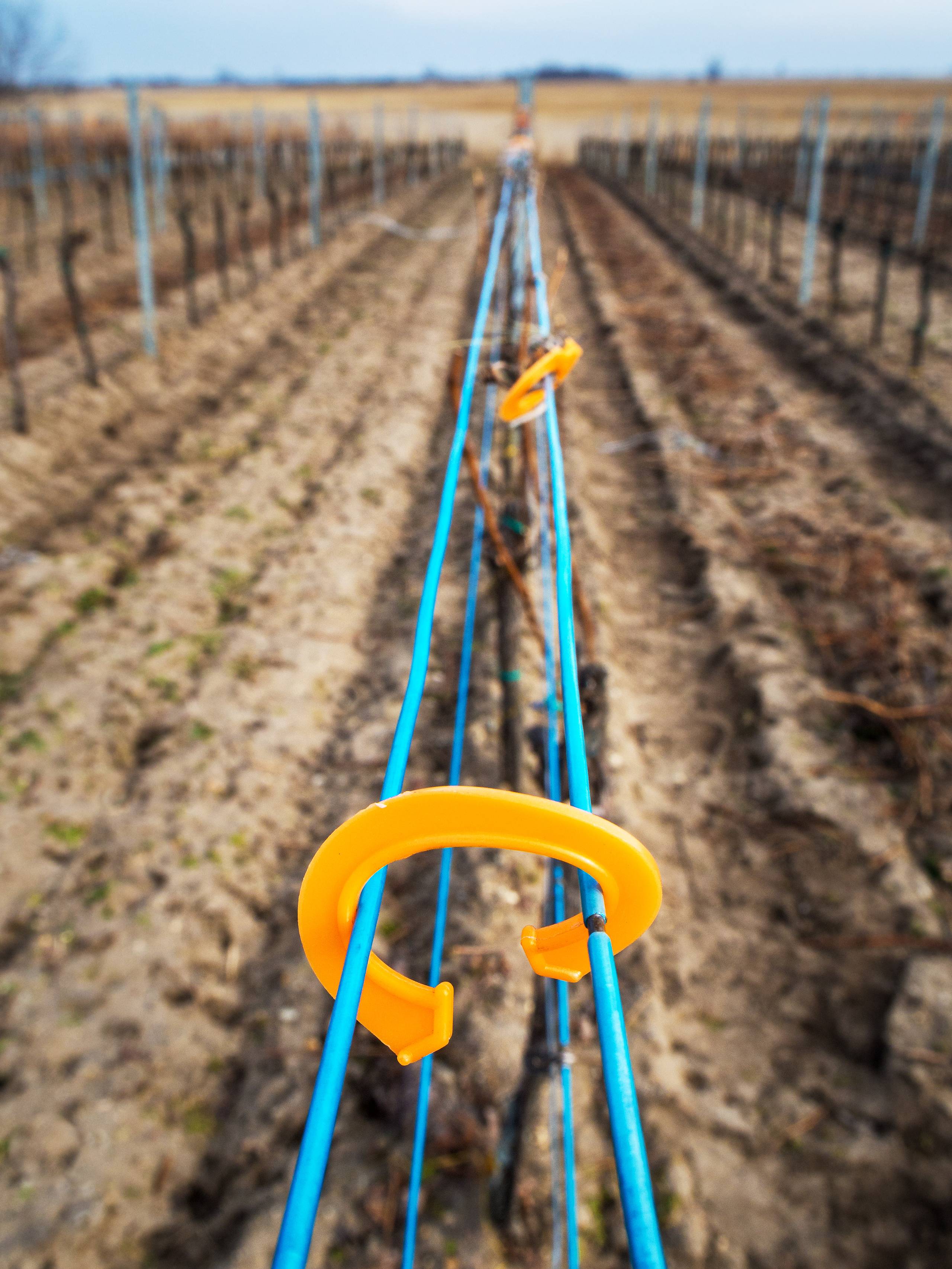

Clips
:format(avif))
Your application
Disclaimer: The information is based on our current knowledge and experience. A legally binding guarantee of certain properties or suitability for a specific individual case cannot be derived from this information. The information provided here does not release processors and users from carrying out their own tests and investigations in specific individual cases. BIO-FED®, M∙VERA®, M·BIOBASE®, M·CYCLOSE®, AF-Eco®, AF-CirColor®, AF-Carbon® and AF-CirComplex® are registered trademarks of AKRO-PLASTIC GmbH.
